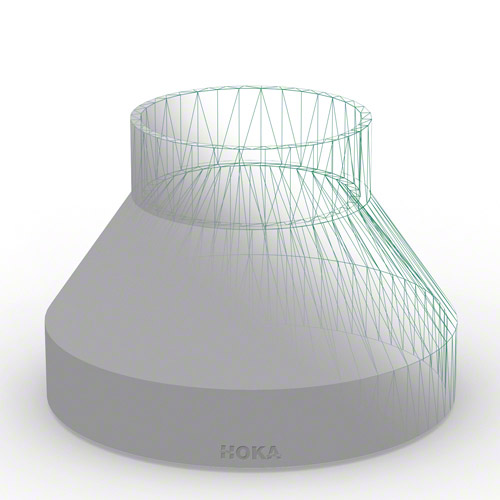

PPs reducer with sockets

Delivery time: 3-5 business days
-PPs (hardly inflammable) reducer with socket symmetrical
-Plastic-fitting with internal interior stop for connecting pipes in an exhaust-air system through welding.
socket inner diameter according to DIN 8077,
-manufacturing: injection molding or made of semi-finished products
-negative overpressure on request according mechanical, chemical and thermal stress

PPs reducer with sockets
PPs reducer with sockets



all prices plus VAT plus shipping costs

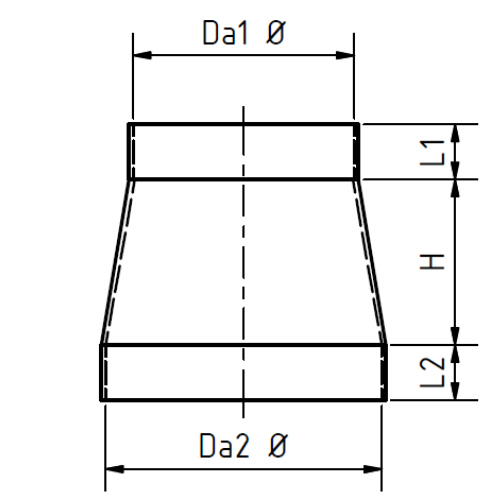

Da 1 Ø x Da 2 Ø H L1 L2 Weight PU Item no Add to cart
              Price Quantity
75 x 90 mm 40 40 40 1 3000465H 18,48 €
75 x 110 mm 80 40 40 1 3000466H 20,61 €
75 x 125 mm 120 40 40 1 1100512H 44,42 €
90 x 110 mm 60 40 40 1 3000467H 21,44 €
90 x 125 mm 100 40 40 1 1100513H 45,25 €
110 x 125 mm 40 40 40 1 3000468H 23,69 €
110 x 140 mm 80 40 40 1 3000469H 24,63 €
110 x 160 mm 140 40 40 1 3000470H 28,67 €
110 x 180 mm 50 40 40 1 3004600H 50,35 €
110 x 200 mm 65 40 40 1 3000471H 32,45 €
125 x 140 mm 40 40 40 1 3000472H 42,76 €
125 x 160 mm 100 40 40 1 3000473H 48,92 €
125 x 180 mm 40 40 40 1 3004601H 52,00 €
125 x 200 mm 55 40 40 1 3004602H 60,77 €
125 x 225 mm 65 40 40 1 3004603H 63,96 €
125 x 250 mm 90 40 40 1 3000474H 64,56 €
140 x 160 mm 60 40 40 1 3000475H 41,34 €
140 x 180 mm 30 40 40 1 3004604H 54,25 €
140 x 200 mm 45 40 40 1 3004605H 61,84 €
140 x 225 mm 60 40 40 1 3004606H 65,39 €
140 x 250 mm 80 40 40 1 3000476H 66,22 €
160 x 180 mm 60 40 40 1 3000477H 42,88 €
160 x 200 mm 120 40 40 1 3000478H 30,56 €
160 x 225 mm 100 40 40 1 3000479H 49,99 €
160 x 250 mm 120 40 40 1 3000480H 35,54 €
160 x 280 mm 85 40 50 1 3004607H 87,30 €
160 x 315 mm 115 40 50 1 3000481H 79,60 €
180 x 200 mm 75 40 40 1 3000482H 39,69 €
180 x 225 mm 85 40 40 1 3004608H 72,01 €
180 x 250 mm 100 40 40 1 3000483H 63,96 €
180 x 280 mm 65 40 50 1 3004609H 92,03 €
180 x 315 mm 100 40 50 1 3000484H 93,10 €
200 x 225 mm 80 40 40 1 3000485H 48,68 €
200 x 250 mm 140 40 40 1 3000486H 43,24 €
200 x 280 mm 105 40 50 1 3000487H 70,60 €
200 x 315 mm 160 40 50 1 3000488H 87,54 €
200 x 355 mm 115 40 50 1 3000489H 90,49 €
225 x 250 mm 80 40 40 1 3000490H 55,67 €
225 x 280 mm 40 40 50 1 3004610H 75,45 €
225 x 315 mm 65 40 50 1 3004611H 84,81 €
225 x 355 mm 95 40 50 1 3004612H 92,75 €
225 x 400 mm 125 40 50 1 3000491H 89,19 €
250 x 280 mm 35 40 50 1 3000492H 52,12 €
250 x 315 mm 100 40 50 1 3000493H 54,25 €
250 x 355 mm 140 40 50 1 3000494H 74,74 €
250 x 400 mm 105 40 50 1 3100734H 81,49 €
250 x 450 mm 145 40 50 1 3000495H 87,07 €
280 x 315 mm 100 50 50 1 3000496H 67,16 €
280 x 355 mm 65 50 50 1 3004614H 70,00 €
280 x 400 mm 90 50 50 1 3004615H 85,04 €
280 x 450 mm 120 50 50 1 3004616H 90,26 €
280 x 500 mm 160 50 50 1 3000497H 98,43 €
315 x 355 mm 20 50 50 1 3000498H 71,67 €
315 x 400 mm 120 50 50 1 3000499H 79,25 €
315 x 450 mm 95 50 50 1 3004617H 89,55 €
315 x 500 mm 135 50 50 1 3000500H 96,66 €
355 x 400 mm 135 50 50 1 3000501H 75,22 €
355 x 450 mm 75 50 50 1 3004618H 88,01 €
355 x 500 mm 110 50 50 1 3004619H 93,93 €
400 x 450 mm 45 50 50 1 7000210H 111,46 €
400 x 500 mm 80 50 50 1 7000211H 136,22 €
400 x 560 mm 140 50 60 1 3100968H 357,96 €
400 x 600 mm 175 50 60 1 3100969H 378,10 €
400 x 630 mm 205 50 60 1 3100970H 397,99 €
400 x 700 mm 265 50 70 1 7000470H 474,63 €
400 x 710 mm 270 50 70 1 3100971H 497,25 €
400 x 800 mm 350 50 80 1 3100972H 542,39 €
400 x 900 mm 435 50 90 1 3100973H 678,25 €
400 x 1000 mm 520 50 100 1 3100974H 813,75 €
450 x 500 mm 45 50 50 1 7000212H 148,66 €
450 x 560 mm 100 50 60 1 3100975H 452,01 €
450 x 600 mm 130 50 60 1 3100976H 474,63 €
450 x 630 mm 160 50 60 1 3100977H 497,25 €
450 x 700 mm 220 50 70 1 7000205H 542,39 €
450 x 710 mm 230 50 70 1 3100978H 565,01 €
450 x 800 mm 305 50 80 1 3100979H 632,88 €
450 x 900 mm 395 50 90 1 3100980H 768,63 €
450 x 1000 mm 480 50 100 1 3100981H 904,25 €
500 x 560 mm 55 50 60 1 3100982H 417,77 €
500 x 600 mm 90 50 60 1 3100983H 424,99 €
500 x 630 mm 115 50 60 1 3100984H 477,47 €
500 x 700 mm 175 50 70 1 7000237H 587,75 €
500 x 710 mm 185 50 70 1 3100985H 596,75 €
500 x 800 mm 265 50 80 1 3100986H 678,25 €
500 x 900 mm 350 50 90 1 3100987H 859,00 €
500 x 1000 mm 435 50 100 1 3100988H 1005,40 €
560 x 600 mm 40 60 60 1 3100989H 497,25 €
560 x 630 mm 65 60 60 1 3100990H 477,47 €
560 x 700 mm 125 60 70 1 1101455H 506,38 €
560 x 710 mm 135 60 70 1 3100991H 561,57 €
560 x 800 mm 215 60 80 1 3100992H 636,79 €
560 x 900 mm 300 60 90 1 3100993H 831,76 €
560 x 1000 mm 385 60 100 1 3100994H 956,72 €
600 x 630 mm 30 60 60 1 3100995H 461,84 €
600 x 700 mm 90 60 70 1 7000489H 552,58 €
600 x 710 mm 100 60 70 1 3100996H 551,62 €
600 x 800 mm 180 60 80 1 3100997H 723,37 €
600 x 900 mm 265 60 90 1 3100998H 806,53 €
600 x 1000 mm 350 60 100 1 3100999H 956,72 €
600 x 1200 mm 525 60 120 1 1101456H 1130,25 €
600 x 1250 mm 570 60 130 1 1101457H 1148,38 €
630 x 700 mm 65 60 70 1 1101458H 546,30 €
630 x 710 mm 75 60 70 1 3101002H 479,37 €
630 x 800 mm 155 60 80 1 3101003H 614,87 €
630 x 900 mm 240 60 90 1 3101004H 759,51 €
630 x 1000 mm 325 60 100 1 3101005H 877,13 €
630 x 1200 mm 500 60 120 1 1101459H 987,52 €
630 x 1250 mm 540 60 130 1 1101460H 1025,31 €
700 x 800 mm 90 70 80 1 7000472H 683,70 €
700 x 900 mm 180 70 90 1 7000473H 835,43 €
700 x 1000 mm 265 70 100 1 7000474H 1085,00 €
700 x 1250 mm 480 70 130 1 1101473H 976,50 €
710 x 800 mm 85 70 80 1 3101008H 642,00 €
710 x 900 mm 170 70 90 1 3101009H 741,38 €
710 x 1000 mm 255 70 100 1 3101010H 913,36 €
710 x 1200 mm 430 70 120 1 1101472H 976,50 €
710 x 1250 mm 475 70 130 1 1101471H 1012,51 €
800 x 900 mm 90 80 90 1 3101013H 853,44 €
800 x 1000 mm 180 80 100 1 3101014H 987,52 €
800 x 1200 mm 350 80 120 1 1101486H 1063,21 €
800 x 1250 mm 395 80 130 1 1101499H 1206,18 €
900 x 1000 mm 90 90 100 1 3101017H 976,50 €
900 x 1200 mm 265 90 120 1 1101500H 1311,00 €
900 x 1250 mm 310 90 130 1 1101489H 1193,50 €
1000 x 1200 mm 180 100 120 1 1101501H 1491,88 €
1000 x 1250 mm 220 100 130 1 3101021H 1280,44 €

 all prices plus VAT plus shipping costs
